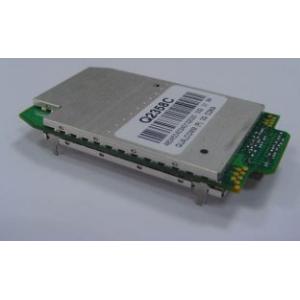

Wavecom CDMA wireless module CDMA module Q2358C
CDMA module
General Specifications WISMOCDMA module:
− Support voice communication Interface connector.
− Wireless interface CDMA2000 (IS-95C)
− Wireless data rate 144 kbps
− Supporting OS All via AT Commands
− Current consumption
Receive Mode Max 150mA
Transmission Mode Max 770mA
Sleep Mode 3.8mA
− Dimension 58 x 32 x 5.9 mm (Including shielding)
− Weight 20 grams
− Operating Temperature -30°C ~ +60°C
− Mode CDMA
− Band (CDMA2000) – (Dual Band)
Band class 0 (800MHz)
Band class 1 (USPCS 1900MHz)
− Test RF Connector
RF Features
− WISMOCDMA CDMA module shall support Rx and Tx specifications per IS-98D
and IS-95A/IS-95B, Sections 2.1.2 through 2.1.3.1.1, 2.1.4, 2.2.3, and 2.1.3.1.9
through 2.1.3.1.10 as well as the corresponding portions of Section 6.
− WISMOCDMA CDMA module shall pass CDG-2 and CDG-3 interoperability testing
specifications on Lucent, Nortel and Motorola infrastructures.
Baseband Features
The WISMOCDMA uses the Qualcomm MSM5105 for its Baseband hardware.
The features of this solution include:
MSM5105
− Embedded QDSP2000 digital signal processor core, enabling features such as
voice recognition, voice memo, speech compression, acoustic echo cancellation,
− 16-bit wide Flash and SRAM support
− Standard MIDI ringer
− Voice mode V1 (EVRC, IS-96A, PureVoiceª), all radio configurations
− High-speed data using both fundamental and supplemental channels
− ARM7TDMI
− General-Purpose Interface Bus
− Microprocessor power down modes
− Battery Management
− Charge Control
− Linear voltage regulation
− Programmable voltages for Digital and RF
− LCD Light driver
− Keypad Light driver
− Ringer driver
− Vibra driver
− RTC circuit
− SBI control
